REDUCING TEE Ø 76 > Ø 40PRODUCT CODE - RX24 L1 40

Product Description

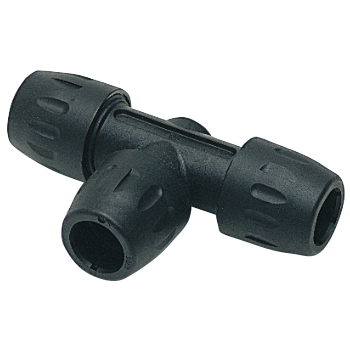

> Transair REDUCING TEE

• Maximum Operating Pressure: 232 psi, 15,9 bar
• Minimum Operating Temperature: -4 °F, -20 °C
• Maximum Operating Temperature: 115°F, 46.1°C
• Vacuum Pressure Rating: 29.6 Inch-Hg
• Application: Compressed Air, Vacuum, Industrial/Inert Gases
• Specifications Met: EN 755.2, EN 755.8, EN 573.3, ISO 9001, ASME B31.1 – 31.9, ISO 8573 (Air Quality), TUV Certification, CE Conformity

Use connectors RR01 to connect RX24 and RA04 tees to Transair aluminium pipe Ø76, Ø100 or Ø168 and Transair pipe-to-pipe connectors to connect Transair aluminium pipe Ø40, Ø50 or Ø63 mm.
