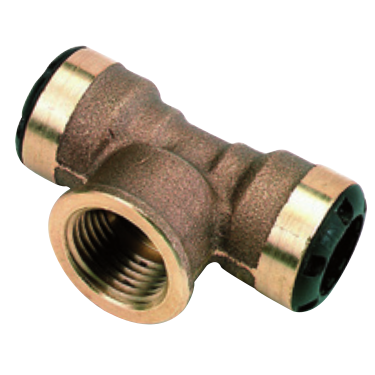

THREADED TEE Ø 22 G3/4 EPDM SEALPRODUCT CODE - RR23 N7 06 01

Product Description

> Transair THREADED TEE

• Connection Thread Size: 3/4 to 4 inch
• Seal Material: EPDM or FKM
• Maximum Operating Pressure: 145 psi, 10 bar
• Minimum Operating Temperature: -4 °F, -20 °C
• Maximum Operating Temperature: +194 °F, +90 °C
• Vacuum Pressure Rating: 29,6 Inch-Hg
• Application: Compressed Air, Vacuum, Industrial/Inert Gas, Process Water, Chemical Transfer

Use 2 connectors RR01 to connect threaded tee RX23 to Transair stainless steel pipe Ø76 or Ø100.
