Product Description

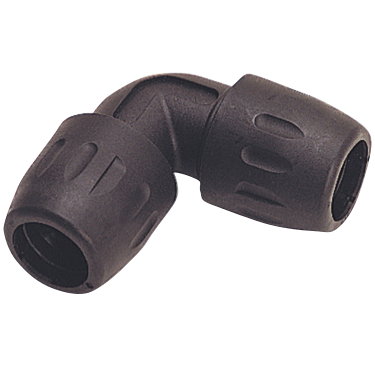

> Transair EQUAL ELBOW 90°
- Maximum Operating Pressure: 232 psi, 15,9 bar
- Minimum Operating Temperature: -4 °F, -20 °C
- Maximum Operating Temperature: 115°F, 46.1°C
- Vacuum Pressure Rating: 29.6 Inch-Hg
- Application: Compressed Air, Vacuum, Industrial/Inert Gases
- Specifications Met: EN 755.2, EN 755.8, EN 573.3, ISO 9001, ASME B31.1 – 31.9, ISO 8573 (Air Quality), TUV Certification, CE Conformity
Use 2 connectors RR01 to connect 90° elbow RX12 and RA02 to Transair aluminium pipe Ø76, Ø100 or Ø168.
