50cc Motor 2 Bolt SAE Flange 1/2" BSP Ports 25mm ShaftPRODUCT CODE - 155-050-A63-12-BAAAA

Product Description

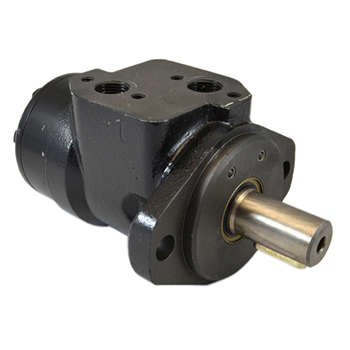

Orbital Motor OMP Equivalent – WP Series

WP系列电动机是一种经济替代to more complex geroler designs that still provides high efficiency across a wide performance range. These motors are intended for medium-duty applications requiring high torque in a compact package and are suitable for industrial and mobile applications including car wash brushes, food processing equipment, conveyors, machine tools, agricultural equipment, sweepers, skid steer attachments and more.

Typical applications include light weight wheel drives, positioners, conveyors, swing drives, feed rollers, screw drives and spinners.

Specifications: Displacements:1.5 – 23.7 cid (25-388 cc) Max speed:1570 RPM Max flow:16 GPM (61 LPM) Max torque:4,320 lb-in (488 Nm) Max pressure:2,320 PSI (160 Bar)

Features: 3 Mounting Options 11 Output shaft options 6 Porting options Can be equipped with a speed sensor Available with relief valve Free turning displacement available

This orbital motor is one of many motors that thehth华体会最新网站has to offer and they are all available for next day delivery.
