1 1/4" BSP - 65 L/Min Max - 140mm LongPRODUCT CODE - SUS-P-088-B20F-140-125-0

Product Description

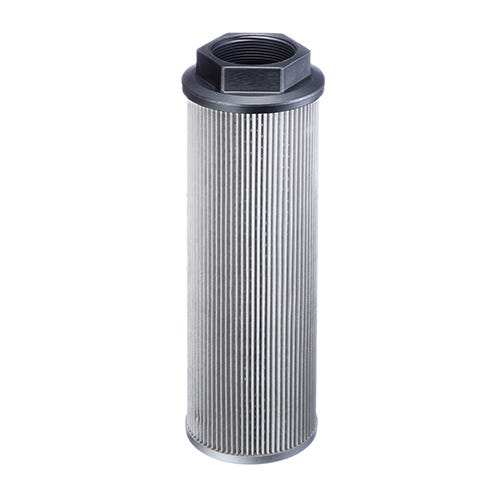

Female BSP Threaded Suction Strainer (Polyamide End Cap) Fromhth华体会最新网站

Characteristics: Designed as in-tank suction strainer elements for direct installation into suction lines of pumps; should always be installed below the minimum fluid level of the reservoir

Features: Available with female BSP thread (ISO 228) or female NPT thread (ANSI B1.20.1)

Operating temperature range: -20 °C … +100 °C / -4 °F … +212 °F

Media Compatibility: Suitable for use with Mineral and Petroleum based hydraulic fluids (HL and HLP)

Materials: Threaded end cap made of glass-fibre reinforced Polyamide (PA); see page E35 for version with Aluminium end cap ƒ Lower end cap and support tube made of Steel, zinc-plated ƒ Standard filter material is Stainless Steel Mesh (125 μm); alternative micron ratings of 60 μm and 250 μm on request

Options: Integrated bypass valve with an opening pressure of 0,2 bar (3 PSI) to reduce the risks of high-pressure drops that can be caused by contaminated strainer elements or high-viscosity fluids Special sizes, designs, materials and configurations are available on request.

Thehth华体会最新网站does its best to assure that all of your needs are met, and these filler breathers are all available for next day delivery, please contact us first if you want it next day so we can check our stock.

• BSP threaded
• 12 to 400 litres per minute
• -20°C to +100°C temperature range
• 125 micron rating
• Alternative micron ratings available on request
