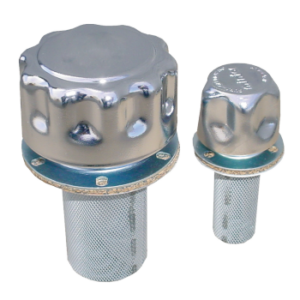

Steel Filler Breather Cap (Screw-In Version), Cap Diameter 47mm BSP

Product description

Steel Filler Breather Cap (Screw-In Version), Cap Diameter 47mm BSP Fromhth华体会最新网站

Characteristics: Designed to be used as filler ports for hydraulic reservoirs, allowing the reservoir to breathe whilst protecting it from contamination found in harsh environments.

Features: Cap diameter of Ø47mm / Ø1.85 in ƒ Screw-in version, equipped with male BSP thread (ISO 228) or male NPT thread (ANSI B1.20.1) ƒ Operating temperature range: -30 °C … +120 °C / -22 °F … +248 °F

Materials: Breather cap made of Steel, zinc/nickel-plated (Fe/Zn Ni 6) and free of hexavalent chromium CrVI (standard option); chrome-plated and epoxy-coated versions available ƒ Threaded socket made of Steel, zinc-plated Consult STAUFF for alternative materials.

Accessories/Options:ƒ Air filter element Maximum Air Flow Rate ƒ 0,40m³/min / 14.13 cfm Consult STAUFF for detailed air flow curves.

Oil Displacement: 400 l/min / 106USGPM

Thehth华体会最新网站does its best to assure that all of your needs are met, and these filler breathers are all available for next day delivery, please contact us first if you want it next day so we can check our stock.

Read Full Description
