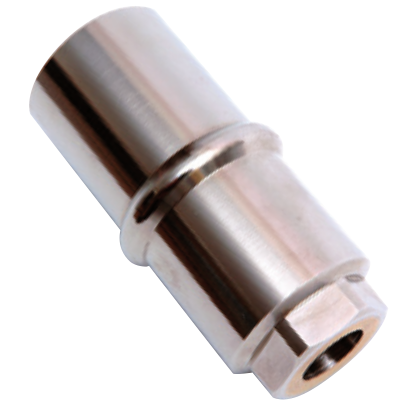

FEMALE STUD Ø 42 BSP G1''PRODUCT CODE - RR14 M4 08
£311.41Ex. VAT£373.69Incl. VAT
View other size optionsProduct Description
> Transair PLUG-IN REDUCER
- Connection Thread Size: 3/4 to 4 inch
- Seal Material: EPDM or FKM
- Maximum Operating Pressure: 145 psi, 10 bar
- Minimum Operating Temperature: -4 °F, -20 °C
- Maximum Operating Temperature: +194 °F, +90 °C
- Vacuum Pressure Rating: 29,6 Inch-Hg
- Application: Compressed Air, Vacuum, Industrial/Inert Gas, Process Water, Chemical Transfer
Use a connector RP06 to connect plug-in reducer RP14 to Transair stainless steel pipe Ø42 or Ø60 and a connector RR05 to connect to Transair stainless steel pipe Ø22 or Ø28.
Use a connector RR01 to connect plug-in reducer RX66 to Transair stainless steel pipe Ø76 or Ø100 and a connector RP06 to connect to Transair stainless steel pipe Ø60.
