CGI Gasket 6

350mm PN 10-16 Spiral Round Gasket - CS 316L Outer / FLEXICARB 316 InnerPRODUCT CODE - PN 10-16-350mm

£37.94Ex. VAT£45.53Incl. VAT

View other size options
QTY

Product Description

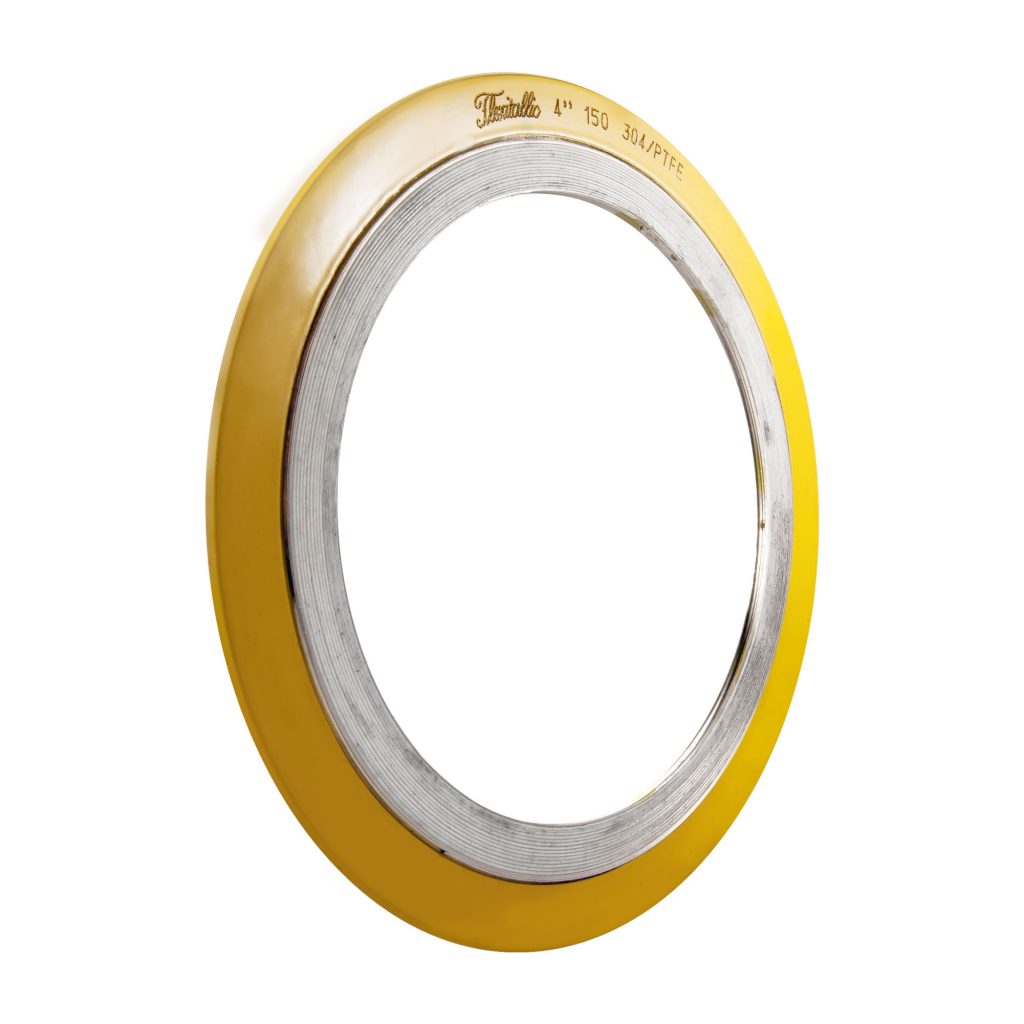

The Style CGI is for use with flat face and raised face flanges, this gasket features increased compressive force for blow-out prevention and is specified for high pressure/temperature service or where corrosive or toxic media are present.

Approval BAM for Oxygen, TA Luft
Flange Face Flat, Raised
Maximum Temperature 450°C / 842°F
Media Hazardous
Minimum Temperature -240°C / -400°F
Pressure 431 Bars / 6251.14 PSI
Pressure Class 150, 300, 600, 1500, 2500, 400, 900
Pressure Rating PN PN10, PN16, PN25, PN40, PN64, PN100, PN160, PN250
